Voltage Gate
PASSDevice output type must match generator output.
120V required -> 120V available
Yes, the Pecron E3600LFP can run an Electric Wheelchair Charger
This pairing clears the safety headroom. Required ~393W running and 393W surge; the Pecron E3600LFP is rated 3600W / 7000W.
Power Margin Analysis
3600W / 7000W Capacity Running 3207W headroom
393W required
Surge 6607W headroom
393W required
Decision Gate Waterfall
Same decision gates as the engine: voltage, running, surge. Runtime is shown as operational context.
2
Running Gate
PASSContinuous draw with safety buffer applied.
393W required -> 3,600W available (3,207W headroom)
Required 393W required
Available 3,600W
3
Surge Gate
PASSStartup peak with safety buffer applied.
393W required -> 7,000W available (6,607W headroom)
Required 393W required
Available 7,000W
4
Runtime Insight
INFORuntime context only. It does not change the electrical compatibility verdict.
Continuous estimate: 6.3h
Device profile reference: up to 8h per day.
Power bars show required versus available output for each gate.
View full compatibility reportDecision Snapshot
Quick compatibility, required headroom, and model-specific context at a glance.
⚡
3600W
Running Power
🔋
3072Wh
Capacity
⏱️
~6.3h
Est. Runtime
☀️
2400W
Solar Input
Quick Compatibility Check
- 1 Running headroom: target 393W; generator provides 3600W.
- 2 Surge headroom: target 393W; generator provides 7000W.
- 3 Tip: leave headroom for startup spikes and warm conditions.
Model-Specific Results
3 of 3 models are SAFE or TIGHT. Most demanding model: Permobil VoltPro (616270 / 616347) (341W surge).
| Model | Running | Surge | Verdict | Runtime | Source |
|---|---|---|---|---|---|
| Pride / UPG 24BC3500L-1 (24V 3.5A Lithium) | 121W | 121W | Safe | ~17.8h | Engineering Est. |
Show expert analysisTechnical: **Running load:** ~121W AC estimated from 101W DC output (28.8V × 3.5A) at ~83% charger efficiency. **Surge:** ~121W (switch-mode charger, no inrush). **Voltage:** 120V AC (universal 100-240V input). This is a lithium-only charger for Go-Go Endurance scooters and Jazzy EVO Series 613 power chairs. Field note: This charger is lithium-only — do not connect to lead-acid batteries. At 121W it is the lightest load in the set and compatible with virtually any power station above 200W continuous output. Verify pure sine wave output for medical equipment. Can I charge a lithium wheelchair battery with a portable power station? Only if your power source can supply at least 121W continuous at 120V. Lithium wheelchair chargers draw less than lead-acid equivalents and are well-suited to portable power, but always maintain a backup source for medical mobility equipment. | |||||
| Pride / UPG 24BC5000T-4 (24V 5A) | 180W | 180W | Safe | ~11.9h | Engineering Est. |
Show expert analysisTechnical: **Running load:** ~180W AC estimated from 148W DC output (29.6V × 5.0A) at ~83% charger efficiency. **Surge:** ~180W (switch-mode charger, no inrush). **Voltage:** 120V AC (universal 100-240V input). Three-stage charge cycle with DOE-mandated 20-hour auto-cutoff. Field note: This is the most common charger size for standard power wheelchairs with Group 22NF or Group 24 lead-acid batteries. At 180W, a 1,500 Wh power station provides roughly 8 hours of charging — enough for a full overnight cycle. How long can a portable power station run this wheelchair charger? Only if your power source can supply at least 180W continuous at 120V. A 1,500 Wh power station provides approximately 8 hours at full draw, sufficient for a complete charge cycle on most standard wheelchair batteries. | |||||
| Permobil VoltPro (616270 / 616347) | 341W | 341W | Safe | ~6.3h | OEM Manual |
Show expert analysisTechnical: **Running load:** 341W AC worst-case (300W max DC output at OEM minimum 88% efficiency). **Surge:** 341W (switch-mode charger, no inrush). **Voltage:** 120V AC only (110-126V tolerance range). This is a 10A charger designed for Permobil power wheelchairs with large battery banks (30-100 Ah at C₂₀ rate). Field note: The VoltPro is the highest-draw wheelchair charger in this comparison. Most mid-range power stations (under 500W continuous) can handle it, but the energy demand is substantial. For a full overnight charge during an outage, budget at least 2,500 Wh of usable station capacity. Why does the Permobil VoltPro draw so much more than other wheelchair chargers? Only if your power source can supply at least 341W continuous at 120V. The VoltPro is a 10A high-current charger designed for large power wheelchair batteries (up to 100 Ah). It charges faster but demands more from the power source than standard 3.5A or 5A chargers. | |||||
How This Pairing Performs Across Our Database
This unit ranks #23 of 29 compatible generators for this device by buffered margin (Overkill class).
How Electric Wheelchair Charger Performs Across 33 Tested Generators
29 of 33 generators are SAFE+TIGHT for Electric Wheelchair Charger.
29
Safe+Tight
Safe 29 (88%)
Fail 4 (12%)
Power Comparison: Pecron E3600LFP vs Top Alternatives for Electric Wheelchair Charger
Pecron E3600LFP Safe Overkill
Current unit
Running 3,600W
Surge 7,000W
Fit class uses buffered needs (running and surge) for this device.
Specs & Surge Analysis
Medical

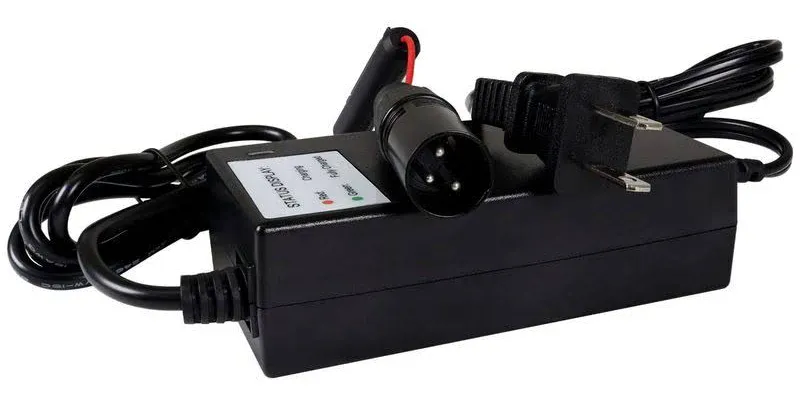

Electric Wheelchair Charger
Daily Mobility Charging
Select Your Model:
341W
Running
341W
Surge
120V
Required
True Surge™ Analysis
Safety Buffer: +15% Running Power Usage 11% Utilization
393W required 3600W Capacity
3207W headroom
Surge/Startup Peak 6% Utilization
393W required 7000W Capacity
6607W headroom
Voltage Match 120V ↔ 120V ✓
Compare Similar Units
Free Tools
Station Tools
Generator Insights
The 7000W surge rating handles demanding startup loads including well pumps, air compressors, and window AC units. The dual 1200W MPPT controllers accept high-voltage panel strings (up to 150V), enabling efficient solar recharging in 1.5–2 hours with 2400W of panels. At 3072Wh base capacity, expect 8+ hours of runtime on moderate loads. The expansion to 15kWh rivals whole-home battery systems.
The E3600LFP uses LiFePO4 chemistry rated for 3,500+ cycles to 80% capacity. The 51.2V battery architecture and UPS function (8–20ms switchover) make it suitable for sensitive electronics and home backup. The TT30-R RV outlet follows NEMA standards for safe 30A connections. Source: Pecron official US product page (manufacturer documentation).
Extend Runtime with Solar
Keep your Electric Wheelchair Charger running with solar • MPPT: 32– 150V • Max: 2400W
Smart Value Anker
400W Panel
1 Hour Sun =
+0.8h per sun hour
MC4 -> XT60
Full in ~11h Adapter required: MC4 -> XT60.
Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.8h per sun hour
MC4 -> XT60
Full in ~11h Adapter required: MC4 -> XT60.
Technical Analysis
Spec-Based • No GuaranteesTechnical Breakdown
Running range: 121W to 341W depending on charger amperage and battery chemistry. Surge: Equal to running watts (switch-mode chargers have no inrush). Voltage: 120V AC. Wheelchair chargers are steady-state loads with no cycling or surge events.
Expected Behavior
Estimated runtime: ~6.3h. Typical charging session is 8 hours overnight. Daily energy consumption ranges from 968 Wh (3.5A lithium) to 2,728 Wh (10A lead-acid). Actual draw tapers as batteries approach full charge, so real energy consumption is lower than worst-case estimates.
Field Note
Wheelchair chargers are medical devices — always maintain a backup power source. Pure sine wave output is recommended. Verify your power station can sustain the full charge duration without thermal shutdown. The charger amperage printed on the label is DC output current, not the AC draw from the wall.
Frequently Asked Questions
Can the Pecron E3600LFP power an Electric Wheelchair Charger?
Yes. The Pecron E3600LFP provides 3600W running / 7000W surge. The Electric Wheelchair Charger needs 393W / 393W (including 15% buffer). That leaves 3207W of running headroom and 6607W of surge margin.
How long will the Pecron E3600LFP run an Electric Wheelchair Charger?
Approximately 6.3 hours, based on the Electric Wheelchair Charger's 341W draw and the Pecron E3600LFP's 3072Wh capacity (70% usable after real-world losses).
What Else Can You Run?
With 500W allocated to the Electric Wheelchair Charger, the Pecron E3600LFP still has ~2039W of margin. These devices could run simultaneously:
🩺
CPAP (No Humidifier)
40W
❄️
Medical Fridge
80W
🌬️
Nebulizer
60W
🌀
Box Fan (Medium)
60W
🖥️
24' Monitor
30W
🎮
Gaming Laptop
230W
Pro Tip for Medical Users: According to energy reports, turning off the humidifier on your Electric Wheelchair Charger can double your runtime. Using a DC cable instead of the AC plug is also recommended to avoid inverter inefficiency.
Compare all 33 generators for the Electric Wheelchair Charger
Ranked by budget, runtime, and overall compatibility.
Related Guides: How to Size a Power Station
Technical Sourcing & Verification
ID: pecron-e3600lfp-electric-wheelchair-charger 🏛️ Device Data Source
Engineering Est. Safety Factor Applied
Derived from variant list (max of variants). Worst case = Permobil VoltPro 616270/616347 (341W running, 341W surge).
⚡ Generator Specs Source
OEM Verified
Pecron E3600LFP Official Product Page (US) — full specifications
Methodology informed by US Department of Energy (DOE) & EIA references where applicable.
