1
Voltage Gate
PASSDevice output type must match generator output.
240V required -> 120V/240V available
Yes, the Anker SOLIX F3800 can run a Well Pump
Yes - Anker SOLIX F3800 has enough running and surge power for the Well Pump (1 HP). Target ~2751W running / 8253W surge; the generator provides 6000W / 9000W.
Power Margin Analysis
6000W / 9000W Capacity Running 3249W headroom
2751W required
Surge 747W headroom
8253W required
Decision Gate Waterfall
Same decision gates as the engine: voltage, running, surge. Runtime is shown as operational context.
2
Running Gate
PASSContinuous draw with safety buffer applied.
2,751W required -> 6,000W available (3,249W headroom)
Required 2,751W required
Available 6,000W
3
Surge Gate
PASSStartup peak with safety buffer applied.
8,253W required -> 9,000W available (747W headroom)
Required 8,253W required
Available 9,000W
3b
With Soft-Start
PASSAlternative startup path with reduced inrush.
3,714W required -> 9,000W available (5,286W headroom)
Required 3,714W
Available 9,000W
4
Runtime Insight
INFORuntime context only. It does not change the electrical compatibility verdict.
Continuous estimate: 1.1h
Device profile reference: up to 2h per day.
Power bars show required versus available output for each gate.
View full compatibility reportDecision Snapshot
Quick compatibility, required headroom, and model-specific context at a glance.
⚡
6000W
Running Power
🔋
3840Wh
Capacity
⏱️
~1.1h
Est. Runtime
☀️
2400W
Solar Input
Quick Compatibility Check
- 1 Running headroom: target 2751W; generator provides 6000W.
- 2 Surge headroom: target 8253W; generator provides 9000W.
- 3 Tip: leave headroom for startup spikes and warm conditions.
Model-Specific Results
3 of 3 models are SAFE or TIGHT. Most demanding model: Red Lion RL12G10-2W2V (1 HP Deep Well Submersible) (7,176W surge).
| Model | Running | Surge | Verdict | Runtime | Source |
|---|---|---|---|---|---|
| Wayne SWS100 (1 HP Shallow Well Jet Pump) | 1,840W | 5,520W | Safe | ~1.5h | NEC Standard |
Show expert analysisTechnical: **Running load:** 1840W using NEC full-load current for a 1 HP single-phase motor at 230V. **Startup surge:** 5520W estimated with a 3x motor inrush multiplier. **Voltage:** 240V required in normal US installation. Field note: Wayne publishes HP and voltage, but not FLA/LRA for SWS100. Sizing is intentionally conservative using NEC motor tables. Can a portable power station run the Wayne SWS100? Only if it provides 240V output and can handle about 1840W continuous plus a 5520W startup spike. | |||||
| Red Lion RL12G10-2W2V (1 HP Deep Well Submersible) | 2,392W | 7,176W | Safe | ~1.1h | NEC Standard |
Show expert analysisTechnical: **Running load:** 2392W from OEM voltage/current data (230V × 10.4A). **Startup surge:** 7176W estimated at 3× running per NEC 430.248 due to high-inrush induction motor behavior. **Voltage:** 240V required. Field note: This is the battery-killer profile in the set: high running watts plus very high startup inrush. Why does this Red Lion model fail on many power stations? Because the startup surge is very high relative to consumer inverter surge limits, even when continuous watts look close. | |||||
| Grundfos 15SQ10-220 (SQ Series Soft Start) | 1,702W | 2,553W | Safe | ~1.6h | Engineering Est. |
Show expert analysisTechnical: **Running load:** 1702W from OEM full-load amps. **Estimated startup surge:** 2553W using a 1.5x soft-start assumption. **Voltage:** 240V required. Field note: This is the generator-friendly profile in the set: still a 240V well-pump load, but with meaningfully lower startup demand. Is the Grundfos SQ easier on battery inverters than standard well pumps? Generally yes, because the SQ line uses soft-start behavior that lowers startup inrush compared with hard-start 1 HP pumps. | |||||
How This Pairing Performs Across Our Database
This unit ranks #2 of 4 compatible generators for this device by buffered margin (Overkill class).
How Well Pump (1 HP) Performs Across 33 Tested Generators
4 of 33 generators are SAFE+TIGHT for Well Pump (1 HP).
4
Safe+Tight
Safe 3 (9%)
Tight 1 (3%)
Soft Start 1 (3%)
Voltage Fail 28 (85%)
Power Comparison: Anker SOLIX F3800 vs Top Alternatives for Well Pump (1 HP)
Anker SOLIX F3800 Safe Overkill
Current unit
Running 6,000W
Surge 9,000W
Fit class uses buffered needs (running and surge) for this device.
Specs & Surge Analysis
Home Infrastructure

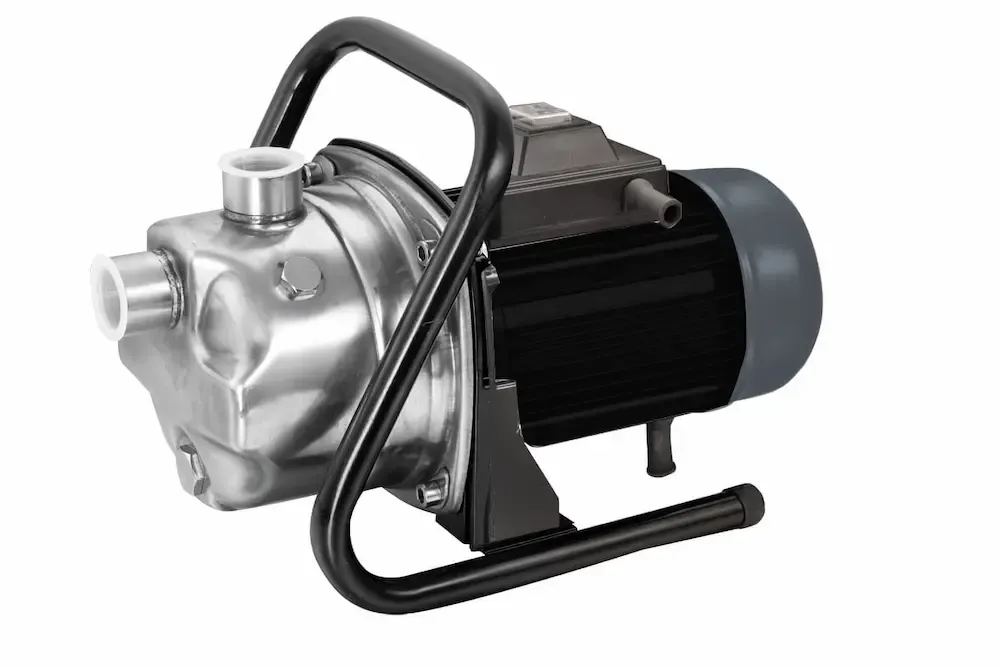

Well Pump (1 HP)
Rural Water Supply
Select Your Model:
2392W
Running
7176W
Surge
240V
Required
True Surge™ Analysis
Safety Buffer: +15% Running Power Usage 46% Utilization
2751W required 6000W Capacity
3249W headroom
Surge/Startup Peak 92% Utilization
8253W required 9000W Capacity
747W headroom
Voltage Match 240V ↔ 120V/240V ✓
Startup Surge Visual
Startup Surge
Well Pump (1 HP) vs Anker SOLIX F3800
Startup surge stays within the power station surge limit.
⚠️
Before You Buy: Connection Check
High-voltage device
This device typically needs 240V split-phase or a hardwired connection. Most portable stations are 120V-only. Verify the plug type and voltage on the device label/manual before purchase.
Installation warning
These systems are often hardwired to a home panel. To run them from a portable station, you may need a transfer switch installed by an electrician. You cannot just plug it in.
Compare Similar Units
Free Tools
Station Tools
Generator Insights
The 9000W surge rating can handle typical compressor-based appliances like central air conditioners, well pumps, and refrigerators during startup. This capacity can support multiple simultaneous high-draw devices once running loads stabilize. Expect reliable operation for tools, HVAC systems, and other inductive loads that demand short-duration power spikes.
This unit employs LFP chemistry with a 3840Wh capacity, designed for stable discharge under high-demand conditions. The architecture supports both sustained and transient loads within rated limits. Source: Anker SOLIX F3800 User Manual v1.1 (Specifications) (OEM documentation).
Extend Runtime with Solar
Keep your Well Pump (1 HP) running with solar • MPPT: 11– 60V • Max: 2400W
Official Anker
100W Panel
1 Hour Sun =
+0h per sun hour
MC4 -> XT60
Full in ~54.9h Adapter required: MC4 -> XT60.

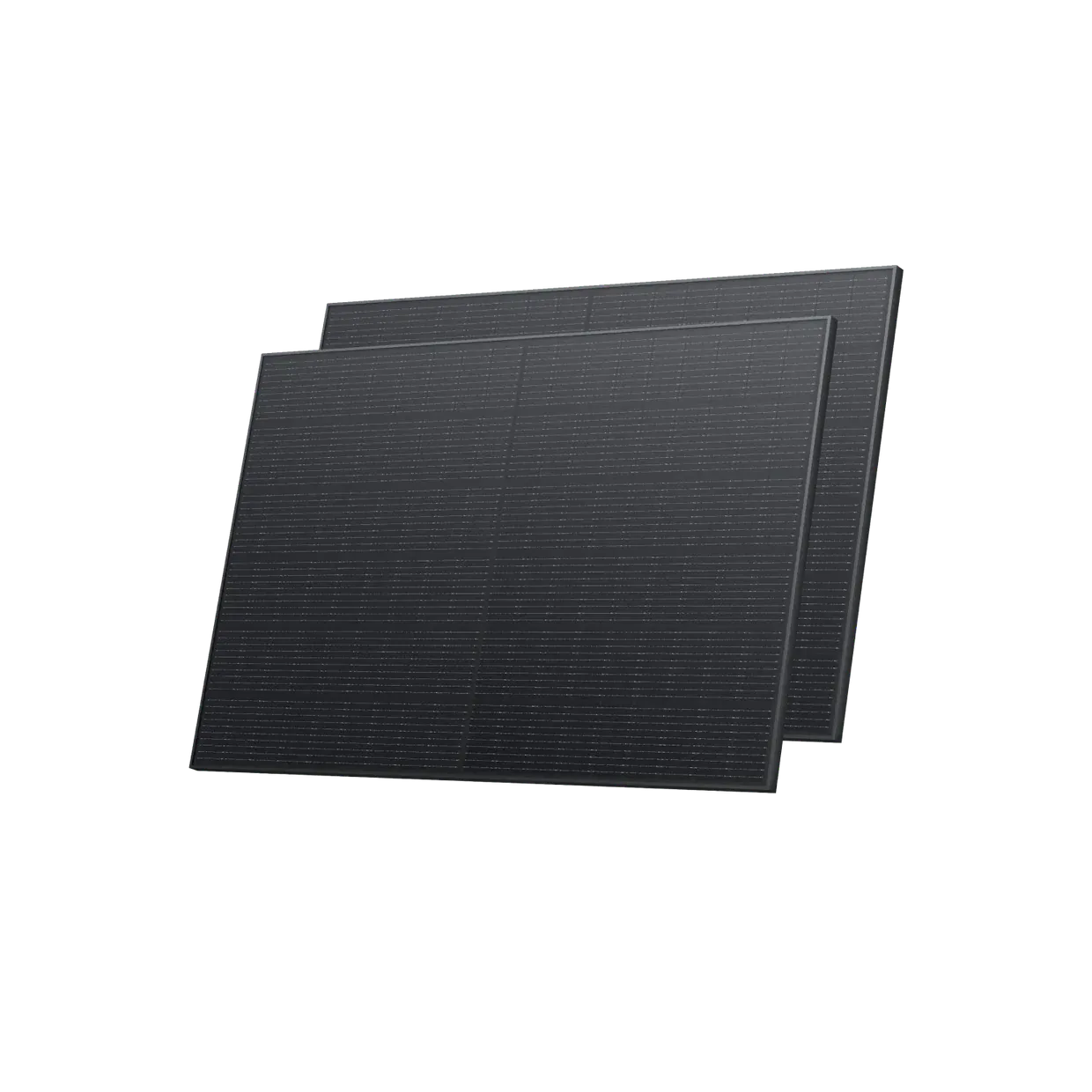

Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.1h per sun hour
MC4 -> XT60
Full in ~13.7h Adapter required: MC4 -> XT60.
Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.1h per sun hour
MC4 -> XT60
Full in ~13.7h Adapter required: MC4 -> XT60.
Technical Analysis
Spec-Based • No GuaranteesTechnical Breakdown
Running range: 1702W to 2392W across common 1 HP well pump designs. Startup range: 2553W to 7176W depending on motor/start behavior. Voltage: 240V class load in typical US installations.
Expected Behavior
Estimated runtime: ~1.1h. Typical duty cycle is about 2 hours/day, with short frequent cycles. Daily energy falls around 3404 to 4784Wh depending on the model.
Field Note
For well pumps, startup behavior matters more than nameplate HP. A soft-start design can change a borderline pairing into a stable one.
Frequently Asked Questions
Can the Anker SOLIX F3800 power a Well Pump?
Yes. The Anker SOLIX F3800 provides 6000W running / 9000W surge. The Well Pump (1 HP) needs 2751W / 8253W (including 15% buffer). That leaves 3249W of running headroom and 747W of surge margin.
How long will the Anker SOLIX F3800 run a Well Pump?
Approximately 1.1 hours, based on the Well Pump (1 HP)'s 2392W draw and the Anker SOLIX F3800's 3840Wh capacity (70% usable after real-world losses).
What Else Can You Run?
With 1900W allocated to the Well Pump (1 HP), the Anker SOLIX F3800 still has ~508W of margin. These devices could run simultaneously:
🌀
Box Fan (Medium)
60W
🔥
Space Heater (Eco)
750W
💡
LED Lamp
10W
📺
55' LED TV
80W
🥘
Slow Cooker
200W
☕
Coffee Maker (Brew)
800W
Power Tip: To get the most out of your Anker SOLIX F3800, keep it in a well-ventilated area. Extreme temperatures can slightly reduce the efficiency of the LFP/NMC cells.
Compare all 33 generators for the Well Pump (1 HP)
Ranked by budget, runtime, and overall compatibility.
Related Guides: How to Size a Power Station 120V vs 240V Explained What Are Surge Watts? Soft-Starters Guide
Technical Sourcing & Verification
ID: anker-solix-f3800-well-pump-1hp 🏛️ Device Data Source
Engineering Est. Safety Factor Applied
Derived from variant list (max of variants). Worst case = Red Lion RL12G10-2W2V (2392W running, 7176W surge).
⚡ Generator Specs Source
OEM Verified
Anker SOLIX F3800 User Manual v1.1 (Specifications)
Methodology informed by US Department of Energy (DOE) & EIA references where applicable.
