1
Voltage Gate
PASSDevice output type must match generator output.
240V required -> 120V/240V available
Can the Anker SOLIX F3800 Run an Electric Water Heater? It Depends on Your Model
3 of 3 models are compatible with this generator.
Jump to model-specific results ↓Power Margin Analysis
6000W / 9000W Capacity Running Up to 1050W headroom on lighter models; 51W short on demanding models
4950W to 6051W required
Surge 2949W to 4050W headroom by model
4950W to 6051W required
Decision Gate Waterfall
Same decision gates as the engine: voltage, running, surge. Runtime is shown as operational context.
2
Running Gate
PARTIALContinuous draw with safety buffer applied.
4,950W to 6,051W required -> 6,000W available (1,050W headroom on lighter models)
Required 4,950W to 6,051W required
Available 6,000W
3
Surge Gate
PASSStartup peak with safety buffer applied.
4,950W to 6,051W required -> 9,000W available (2,949W to 4,050W headroom)
Required 4,950W to 6,051W required
Available 9,000W
4
Runtime Insight
INFORuntime context only. It does not change the electrical compatibility verdict.
Continuous estimate: 0.5h
Device profile reference: up to 3h per day.
Power bars show required versus available output for each gate.
View full compatibility reportDecision Snapshot
Quick compatibility, required headroom, and model-specific context at a glance.
⚡
6000W
Running Power
🔋
3840Wh
Capacity
⏱️
~0.5h
Est. Runtime
☀️
2400W
Solar Input
Quick Compatibility Check
- 1 3 of 3 models are compatible with the Anker SOLIX F3800.
- 2 Model requirements range from 4500W to 5500W running watts.
- 3 See the model-specific results table for per-model verdicts.
Model-Specific Results
3 of 3 models are SAFE or TIGHT. Most demanding model: State ProLine ESX-50-DOLS-120 (5,500W surge).
| Model | Running | Surge | Verdict | Runtime | Source |
|---|---|---|---|---|---|
| A. O. Smith ProLine ENS-50-110 | 4,500W | 4,500W | Safe | ~0.6h | OEM Verified |
Show expert analysisTechnical: **Running load:** 4500 W. **Surge:** 4500 W. **Voltage:** 240V split-phase required. Resistive heating element draws steady current without inrush spike. Field note: Ensure power station maintains 240V regulation under sustained 4500 W load. Voltage sag below 220V may trigger thermal cutoff. Can I power this water heater with a portable power station? Only if your power source provides 240V split-phase output and can supply 4500W continuous and 4500W surge. | |||||
| State ProLine ESX-50-DOLS-120 | 5,500W | 5,500W | Tight | ~0.5h | OEM Verified |
Show expert analysisTechnical: **Running load:** 5,500 W. **Surge:** 5,500 W. **Voltage:** 240V. Requires a power station with split-phase 240V output and sustained 5,500 W capacity. Field note: Confirm your power station supports continuous 5,500 W output without thermal derating. Verify 240V split-phase before connection. Can I run this water heater on a portable power station? Only if your power source provides 240V split-phase output and can supply 5500W continuous and 5500W surge. Verify voltage and sustained wattage capacity before attempting operation. | |||||
| State ProLine Master EN8-50-DORS-SG110 | 4,500W | 4,500W | Safe | ~0.6h | OEM Verified |
Show expert analysisTechnical: **Running load:** 4500 W continuous at 240V. **Surge:** 4500 W (resistive heating element, no inrush spike). Only compatible if your power station supplies true 240V split-phase output and sustained 4500 W capacity. Field note: Verify your power station explicitly supports 240V loads before connecting. Most portable units output 120V only and cannot safely power this water heater. Can I run this water heater on a portable power station? Only if your power source provides 240V split-phase output and can supply 4500W continuous and 4500W surge. Most consumer units do not. | |||||
How This Pairing Performs Across Our Database
This unit ranks #1 of 3 compatible generators for this device by buffered margin (Balanced class).
How Electric Water Heater (50 Gal) Performs Across 33 Tested Generators
3 of 33 generators are SAFE+TIGHT for Electric Water Heater (50 Gal).
3
Safe+Tight
Safe 1 (3%)
Tight 2 (6%)
Fail 2 (6%)
Voltage Fail 28 (85%)
Power Comparison: Anker SOLIX F3800 vs Top Alternatives for Electric Water Heater (50 Gal)
Anker SOLIX F3800 Tight Balanced
Current unit
Running 6,000W
Surge 9,000W
Fit class uses buffered needs (running and surge) for this device.
Specs & Surge Analysis
Home Infrastructure

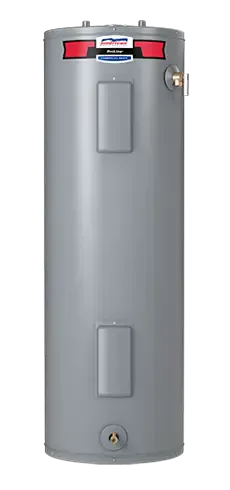

Electric Water Heater (50 Gal)
Hot Water Supply
Select Your Model:
5500W
Running
5500W
Surge
240V
Required
True Surge™ Analysis
Safety Buffer: +10% Running Power Usage 83% to 101% Utilization
4950W to 6051W required 6000W Capacity
Up to 1050W headroom on lighter models; 51W short on demanding models
Surge/Startup Peak 55% to 67% Utilization
4950W to 6051W required 9000W Capacity
2949W to 4050W headroom by model
Voltage Match 240V ↔ 120V/240V ✓
⚠️
Before You Buy: Connection Check
High-voltage device
This device typically needs 240V split-phase or a hardwired connection. Most portable stations are 120V-only. Verify the plug type and voltage on the device label/manual before purchase.
Compare Similar Units
Free Tools
Station Tools
Generator Insights
The 9000W surge rating can handle typical compressor-based appliances like central air conditioners, well pumps, and refrigerators during startup. This capacity can support multiple simultaneous high-draw devices once running loads stabilize. Expect reliable operation for tools, HVAC systems, and other inductive loads that demand short-duration power spikes.
This unit employs LFP chemistry with a 3840Wh capacity, designed for stable discharge under high-demand conditions. The architecture supports both sustained and transient loads within rated limits. Source: Anker SOLIX F3800 User Manual v1.1 (Specifications) (OEM documentation).
Extend Runtime with Solar
Keep your Electric Water Heater (50 Gal) running with solar • MPPT: 11– 60V • Max: 2400W
Official Anker
100W Panel
1 Hour Sun =
+0h per sun hour
MC4 -> XT60
Full in ~54.9h Adapter required: MC4 -> XT60.
Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.1h per sun hour
MC4 -> XT60
Full in ~13.7h Adapter required: MC4 -> XT60.
Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.1h per sun hour
MC4 -> XT60
Full in ~13.7h Adapter required: MC4 -> XT60.
Technical Analysis
Spec-Based • No GuaranteesTechnical Breakdown
Running load: 5500W at 240V. Surge: 5500W (resistive element, no inrush). Requires dual 120V legs in phase (240V split-phase) for safe operation. Every portable power station in our database outputs 120V single-phase only, making this device incompatible regardless of wattage capacity.
Expected Behavior
Estimated runtime: ~0.5h. Cycles on and off to maintain set temperature. Daily usage averages 3 hours, consuming approximately 16,500 Wh if heating from cold. Even if a 240V source existed, the 5,500W sustained draw would drain a 3,000Wh battery in under 3 hours of active heating.
Field Note
An electric water heater is not a realistic portable power station load. The 240V split-phase requirement eliminates every consumer portable unit, and the 5,500W sustained draw exceeds most units' continuous capacity even at 120V. For outage hot water, a gas or propane water heater operates without grid electricity. Alternatively, heating water on a propane camp stove or using a 120V electric kettle (1,500W) on a power station provides small-batch hot water.
Frequently Asked Questions
Can the Anker SOLIX F3800 power an Electric Water Heater?
It depends on the model. 3 of 3 Electric Water Heater (50 Gal) models are compatible with the Anker SOLIX F3800. See the model-specific results table for exact verdicts per model.
How long will the Anker SOLIX F3800 run an Electric Water Heater?
It depends on the model. Compatible models run approximately 0.5–0.6 hours on the Anker SOLIX F3800. 0 of 3 models are not compatible. See the model-specific results for details.
Power Tip: To get the most out of your Anker SOLIX F3800, keep it in a well-ventilated area. Extreme temperatures can slightly reduce the efficiency of the LFP/NMC cells.
Compare all 33 generators for the Electric Water Heater (50 Gal)
Ranked by budget, runtime, and overall compatibility.
Technical Sourcing & Verification
ID: anker-solix-f3800-electric-water-heater-50gal 🏛️ Device Data Source
Engineering Est. Safety Factor Applied
Derived from variant list (max of variants). Running worst case = State ProLine ESX-50-DOLS-120 (5500W). Surge = running (resistive heating element — no motor inrush).
⚡ Generator Specs Source
OEM Verified
Anker SOLIX F3800 User Manual v1.1 (Specifications)
Methodology informed by US Department of Energy (DOE) & EIA references where applicable.
